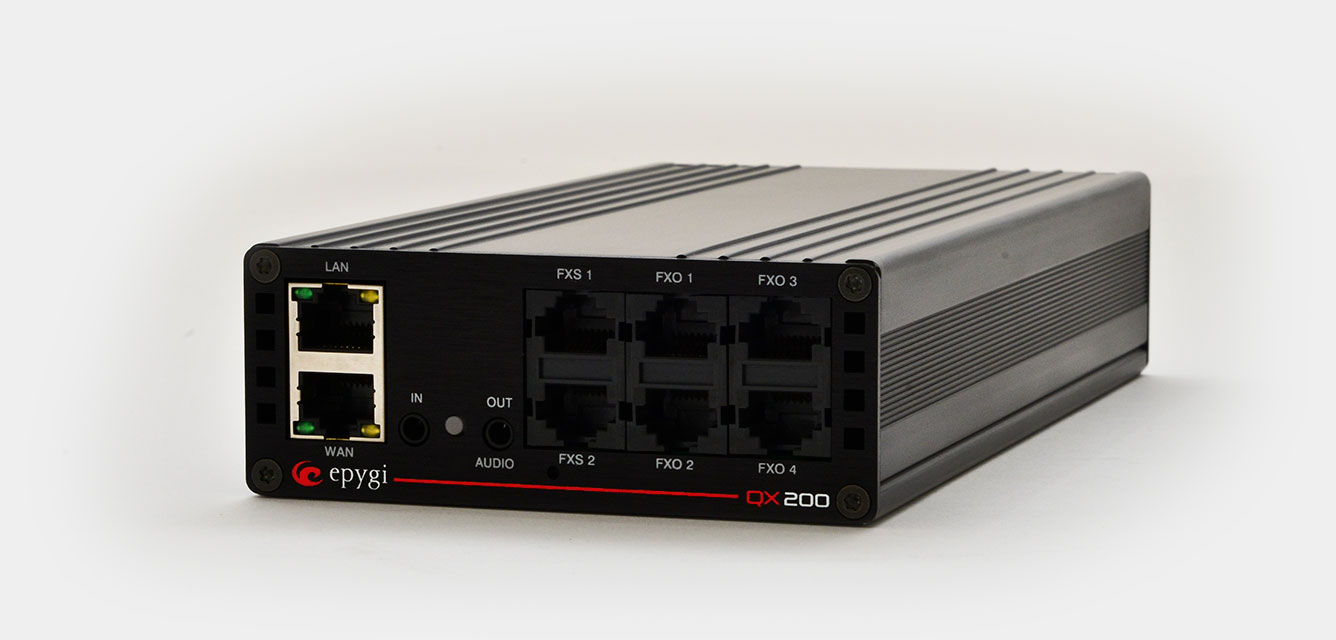

EPYGI QX200 IP PBX

Product Description

The QX200 is equipped with four FXO ports to connect to the PSTN. Also included is SIP trunking, so the QX200 can connect directly to an ITSP at no additional cost. The QX200 starts with support for 24 IP phones, which can either be manually connected or automatically configured.

Auto-recognition and auto-configuration capabilities between the QX200 and certified IP phones simplify installation and operation, giving you the ability to modify automatic assignments through the Graphical User Interface (GUI). Also, integrated into the QX200 is a router, DHCP and firewall with intrusion detection and prevention; therefore, allowing your small business a complete network that can be managed by a single device.

When rack-mounted and paired with an Epygi QX Gateway, power redundancy provides added protection.

Key Facts:

• Analog phones (2)
• IP phones (24)
• Additional IP phones with keys (176)
• Total extensions (202)
• Concurrent calls (64)
• FXO PSTN ports (4)
• Ethernal LAN ports (1)
• Ethernal WAN ports (1)
• Audio In port (1)
• Audio Out port (1)
• SD slot (1)

---



Features Included with Your QX IP PBX:

The following is a list of available features that come free and already installed on your QX IP PBX product.

• Administrative

Automatic Backup/Download of QX Configuration
This feature provides automatic scheduled backups and downloads of QX’s configuration to a LAN PC or WAN location.
Automatic Firmware Updates for Aastra and snom IP Phones
This feature allows your QX to identify the firmware on each installed IP phone (Aastra and/or snom) and automatically load the proper firmware updates.
Automatic QX Firmware Update
This feature allows your QX to detect newer versions of its IP phone firmware and automatically install updates from an Epygi-hosted site.
CDR Tags for Billing
CDR tags eliminates the need for hand-coding of invoices by department, etc.
Daylight Savings Time Adjustment
This feature allows your QX IP PBX to automatically adjust for daylight saving time.
Custom Language support
Your system’s voice prompts can be configured to fit a variety of different downloaded languages.
Enhanced System Logging Support
The QX IP PBX’s Graphical User Interface (GUI) has extensive logging utilities to assist in gathering information for problem resolution.
IP Phone Plug-and-Play
Plug-and-Play allows popular IP phone vendors (Aastra, Alcatel, AudioCodes, Grandstream, Linksys, Pansonic, Polycom, snom, Telematrix, Thomson and Yealink) to automatically acquire an extension on the system and auto-configure without you having to intervene.
QXFXO4, QXISDN4, QXE1T1 and QXFXS24 Gateways Auto Configuration
The Auto Configuration allows your QX IP PBX to detect and automatically configure ports added via the QXFXO4, QXISDN4, QXE1T1 and QXFXS24 Gateways. The new ports appear in the IP PBX’s Graphical User Interface (GUI).
Remote IP Phone Support
You can be remotely located from the QX IP PBX and can take advantage of the same features as if you were in the office.
Voicemail Setup via Phone
This feature allows the voice-enabled wizard to guide you through setting up your personal recorded username, password and voicemail greeting per extension.

• Call Answering

Auto Attendant
The Auto Attendant feature is an Interactive Voice Response (IVR) system that replaces a human operator and directs calls to the appropriate extensions or voice mailboxes. It engages callers through pre-recorded or synthesized audio prompts.
Call Hunt
Call Hunt allows incoming calls to ring on a number of lines so that the first available person can answer the call.
Call Pickup
Call Pickup allows you to define pickup groups by grouping extensions together. Any phone in the building can be used to answer a call that is ringing on another extension within the designated pickup group.
Call Queue
This feature allows incoming callers to be held in a queue while they listen to a customizable recorded message. The caller will then be sent to voicemail or redirected to another extension.
Extension Status
This feature allows a receptionist’s phone to monitor multiple managers’ phones and provide information on the extension’s status – off-hook, on-hook or ringing.
Hot Desking
Hot Desking allows an office with multiple workers using a single physical work station at different times to log in to the handset and use it as their own extension.
Multi-Company Receptionist
The Multi-Company Receptionist feature allows one receptionist to answer calls from predetermined PSTN/IP lines, each identified to a specific company, saving you time and money.
Simultaneous Ring
While covering several managers’ extensions, this feature allows a receptionist’s phone to ring simultaneously with each extension, while showing which manager is being called through the caller ID.

• Call Management

Call Hold
Call Hold keeps one line “off hook” and connected while you make or receive a call on another line. You also have the ability to take the original call off hold and resume the conversation.
Call Park
When a call is “parked,” it is put on hold at a specific extension number to be resumed by someone on another phone. That person can pick up the call by keying the displayed extension number. If no one is available to take the call at the other location, it will “ring back” to the original extension alerting the person who originally parked the call.
Call Transfer
Call Transfer enables you to forward incoming calls to another telephone or extension.
Call Waiting
Call Waiting alerts you that you have an incoming call on an engaged line, allows you to hold your current call, take the second call and gives you the ability to switch back to the original caller.
Three-Way Conferencing
This conferencing feature allows the caller and two other parties to speak together on one connection.

• Call Screening

Call Blocking
Call Blocking prevents calls from pre-selected numbers from ringing through. This feature gives you the opportunity to avoid unwanted callers.
Direct Transfer to a Voice Mailbox
This feature allows a caller to be transferred directly to the voicemail of another user.
Distinctive Ringing
The Distinctive Ringing feature gives you the opportunity to program your IP phones to produce distinctive ring tone sounds for identified callers and to categorize incoming calls made to direct lines (service, sales, billing, etc.).
Do Not Disturb
This feature allows you to route all your incoming calls through the PBX directly to your voicemail. The phone will no longer ring when this setting has been switched on.
Hiding Caller ID
This feature allows you to block your phone number from being identified by the call recipient.

• Convenience

Auto Redial
Callers who get a busy signal will be alerted if the line they are calling becomes available during a specified period of time. A distinctive ring functions as an alert for when the call is connected. You only need to pick up the phone to be connected to the number you were trying to reach.
Call Paging
Call paging allows you to dial into the overhead or external speakers in order to make voice announcements.
Corporate Directory
This feature provides incoming callers with the ability to scroll through a company directory and dial the desired extension automatically.
Intercom
The Intercom feature allows for room-to-room communication via telephone sets.
Speed Dial
Speed Dial gives you the ability to “save” frequently called numbers so that they can be easily dialed with an assigned shortcut of two or three digits.

• Cost & Bandwidth Saving

Call Statistics
The Call Statistics feature gives you the ability to track and report facts (call recipient, length of call, on-hold time, etc.) on incoming and outgoing calls per extension.
Dial Plans (Call Routing)
Call Routing allows calls to travel through a network along a pre-determined path to the end user. This feature helps determine the least expensive way and/or least congested path to route a call. Incoming calls can also be grouped according to area code and routed to specific customer service reps who manage different geographic regions.
Time of Day Dialing
Time of Day Dialing makes it possible for calls to be routed according to the time of day. This enables you to pre-select where a call will be directed in regards to time.

• Epygi Media Streamer (EMS)

This feature allows your on-hold party to listen to music streamed by the EMS, which has the ability to play MP3 files instead of the pre-recorded voice stored on your QX. This feature gives you the ability to play different streams for each extension, to play very long audio files and allows the playlist selection to be easily changed.

• Utility

Hold Music (WAV File Upload)
The Hold Music feature allows callers to hear music or a recorded message while on hold or waiting for other participants to arrive on a conference call.
T.38 Fax, Fax Relay and Clear Channel Fax
The T.38 fax relay standard permits faxes to be transported across IP networks between existing fax terminals. A clear channel gives full use of the bandwidth for this purpose.

• HotCall Add-In For Microsoft Outlook

The HotCall Add-In application works with Microsoft Outlook allowing incoming and outgoing calls to be made within the native Outlook interface. The free application can be used on any Epygi IP PBX running version 5.1.17 or greater.

• HotKeyCall

HotKeyCall is a Microsoft Windows software application, which allows for PC users to dial telephone numbers directly from their desktop on any application window (e.g. web-browsers, e-mail client, text documents, etc.). This can be done by simply highlighting the number you wish to dial and pressing a predefined hot key sequence (e.g. Ctrl-Y).

• QX Configuration Console

The QX Configuration Console (QCC) application allows you to centrally manage a network of QX units from a single desktop PC. The following QCC features allow for efficient and convenient administration of the QX network:

Automatic Login to QX Web Management
Allows for automatic log-in to the QX WEB server
Reboot
Allows you to remotely initiate a system reboot
Configuration Backup
Allows the network of QX units to be backed up and downloaded to your PC
Configuration Restore
Allows a backup configuration file to be uploaded and restored on your QX units
Firmware Update
Allows firmware files to be uploaded and installed on your QX units
Legible Configuration File Upload
Allows configuration files to be sequentially uploaded to your QX units
Language Pack Upload
Allows language packs to be uploaded to your QX units
Upload Company Details
Allows your company details, such as static and dynamic logos, to be uploaded to your QX units
Upload Custom Scenario and Voice Messages
Allows attendant custom scenario and WAV files, compressed to a “tar.gz” file, to be uploaded to your QX units

• System Security Software

The System Security Software feature protects your IP PBX against external hackers, who could have the ability to reconfigure your system through eavesdropping, Denial of Service (DoS) or Theft of Service (ToS). Not only does the software prevent the above through internal protections, but each line also has the ability to be password protected through the security system.

• Unified Communications

Call Relay
The Call Relay feature allows an external call to be relayed through your IP PBX box to an external line or vice versa. This feature allows the call to be routed through one number, thus not revealing the private number of an external phone line. This feature is especially useful when an employee is out of the office. The employee can receive the call on their cell phone through the internal line of the PBX as if they were in the office.
Call Forwarding
Call Forwarding allows you to program your PBX to automatically redirect incoming calls to another number- a mobile phone or home phone for example.
Find Me Follow Me
The Find Me Follow Me feature permits employees to have calls track them down wherever they are. This QX feature makes your employees more efficient, because it gives them the ability to handle office tasks from any location.
Receive Notification of System Events via Text Message
This feature gives you the ability to choose to receive notice of “events” (calls, voice mails, etc.) from the PBX to your mobile phone in the form of a text message.
Surveillance
Your Epygi IP PBX is capable of combining your voice, video and surveillance products in order to create one integrated solution for your business. This surveillance feature allows you to receive 24/7 security updates to your email, video phone, cell phone, etc. so you can maintain a secure environment for your employees and visitors of your business.
Unified Messaging
Unified Messaging integrates different message types – voicemail, email, text messaging, fax – into a single box that is accessible from a variety of devices, including your office phone, PC and cell phone.
Voicemail
Voicemail is a centralized system of managing phone messages for a group of people. Voicemail allows you to receive, answer and manage your phone messages from different locations, sometimes tailoring a response to different callers.
