Yealink VC120 Video Conferencing


Video Conferencing System for Branch Office, Full HD, 18x PTZ camera

Product Description

Yealink – VC120

Video Conferencing System for Branch Office, Full HD, 18x PTZ camera

The VC120 is Yealink’s latest innovative 1080P full-HD video conferencing endpoint for branch offices.

This system supports both H.323 and SIP protocols ensuring compatibility with mainstream video conferencing systems. The VC120 is equipped with an 18X optical PTZ camera so that users can enjoy 1080P full-HD video conferencing, as well as 1080P content sharing. The VC120 also supports dual displays, USB recording and playback. With superior video and audio quality, the VC120 is definitely the best choice for your business video conferencing requirements.
18x optical zoom PTZ camera
Microphone arrays with 360 degree voice pickup
H.264 high profile, saving 50% bandwidth
Yealink intelligent firewall traversal
Bandwidth dynamic adaptive adjustment
Video recording and playback
Dual displays and ‘focus’ feature
High compatibility and interoperability
Remote diagnosis

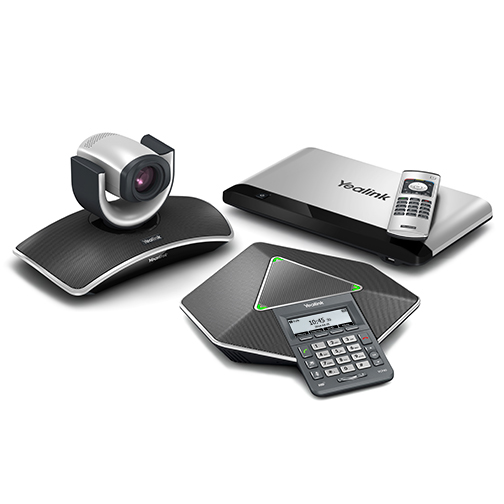

System Components
Codec VC120
VCS Phone VCP40
HD PTZ Camera VCC18
Remote control VCR10
Full-HD Camera
1920×1080 video resolution
Up to 18x optical zoom PTZ camera
Pan angle range: ±100°
Tilt angle range: ±30°
Up to 10 preset position
Beauty shot feature
Video Resolution
Full HD 1080P at 30fps (1920×1080), from 1Mbps
720P (1280×720), from 521Kbps
W448P (768 x 448),WQVGA (400 x 240)
4CIF (704×576), CIF (352 x 288)
Audio Features
3-microphone array
10ft/3-metre and 360 degree voice pickup
Optional 2 expansion microphones, enhancing voice pickup to 16ft/5-metres
Audio Codecs: G.722 (7KHz),G.722.1,G.722.1C,G.711 u/a
Audio technology: AEC, VAD, CNG, PLC, AJB, AGC
Other Physical Features
External universal AC adapter:
AC 100~240V input and DC 19V/3.42 Output
Power consumption (PSU):
Idle<2.8W, normal operating: 24W; MAX: 30W
Dimension (W*D*H):
Codec: 330mm*183mm*40mm
Phone: 320mm*260m*52mm
Camera: 282mm*152mm*159mm
Remote control: 190mm*55mm*24mm
Operating humidity:
Storage temperature:
