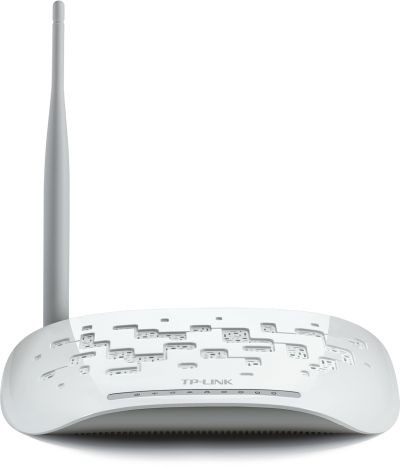

TP Link TD-W8951ND 4 Port Wireless ADSL2 Modem

$50.70

High speed DSL modem, NAT router and wireless access point in one device providing a one-stop networking solution.

Categories: , .

Product Description

    • High speed DSL modem, NAT router and wireless access point in one device providing a one-stop networking solution
    • Wireless speed up to 150Mbps makes it ideal for bandwidth consuming or interruption sensitive applications like online gaming and video streaming
    • Easy Setup Assistant with multi-language support provides a quick & hassle-free installation
    • SPI and NAT firewall protects end-user devices from potential attacks from across the Internet
    • WPA-PSK/WPA2-PSK encryptions provide user networks with active defense against security threats
    • Easy one-touch WPA wireless security encryption with the WPS button
    • Wi-Fi On/Off Button allows users to simply turn their wireless radio on or off
    • QoS enables smooth IPTV streaming and lag-free online gaming
    • Port VLAN binds specific LAN ports and PVCs for differential services
    • WDS wireless bridge provides seamless bridging to expand the wireless network
    • Annex M doubles the upstream data rate
    • Auto-reconnect keeps users online indefinitely
    • Backward compatible with 802.11b/g products





HARDWARE FEATURES
Interface 4 10/100Mbps RJ45 Ports
1 RJ11 Port
Button 1 Power On/Off Switch
1 WPS Button
1 Wi-Fi On/Off Button
External Power Supply 9VDC/0.85A
IEEE Standards IEEE 802.3, 802.3u
ADSL Standards Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite)
ITU-T G.994.1 (G.hs), ITU-T G.995.1 , ITU-T G.996.1, ITU-T G.997.1, ITU-T K.2.1
ADSL2 Standards ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.4 (G.lite.bis)
ADSL2+ Standards ITU-T G.992.5
Dimensions ( W x D x H ) 7.1*4.9*1.4 in. (181*125*36mm)
Antenna Type Omni directional, Detachable, Reverse SMA
Antenna Gain 1 * 5dBi
  • WIRELESS FEATURES
    Wireless Standards IEEE 802.11g, 802.11b, with some n features
    Frequency 2.400-2.4835GHz
    EIRP <20dBm(EIRP)
    Wireless Security Support 64/128 bit WEP, WPA-PSK/WPA2-PSK,
    Wireless MAC Filtering
    SOFTWARE FEATURES
    Quality of Service QoS Remarking based on IPP/ToS, DSCP and 802.1p
    Port Forwarding Virtual server, DMZ, ACL(Access Control List)
    VPN Pass-Through PPTP, L2TP, IPSec Pass-through
    ATM/PPP Protocols ATM Forum UNI3.1/4.0,
    PPP over ATM (RFC 2364),
    PPP over Ethernet (RFC2516),
    IPoA (RFC1577/2225),
    PVC – Up to 8 PVCs,
    Advanced Features Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt;
    Dynamic Host Configuration Protocol (DHCP), DHCP relay;
    Network Address Translation (NAT); PVC/Ethernet Port Mapping
    VLAN, 802.1P, Static Routing, RIP v1/v2 (optional);
    DNS Relay, DDNS, IGMP snooping V1/2IGMP Multicast, UPnP
    Security NAT Firewall, SPI Firewall, MAC / IP / Packet / Application / URL Filtering, Denial of Service(DoS), SYN Flooding, Ping of Death
    Management Web Based Configuration(HTTP), Remote management, Telnet management, Command Line Interface, SSL
    for TR-069, SNMP v1/2c, SNMP over EOC, Web Based Firmware Upgrade, CWMP(TR-069), Diagnostic Tools
    OTHERS
    Certification CE, FCC, RoHS
    Package Contents Wireless N ADSL2+ Modem Router
    External Splitter
    RJ-11 Telephone Cable
    RJ-45 Ethernet Cable
    Quick Installation Guide
    Resource CD
    Power Adapter
    System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
    Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
    Storage Temperature: -40℃~70℃ (-40℉~158℉)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing
