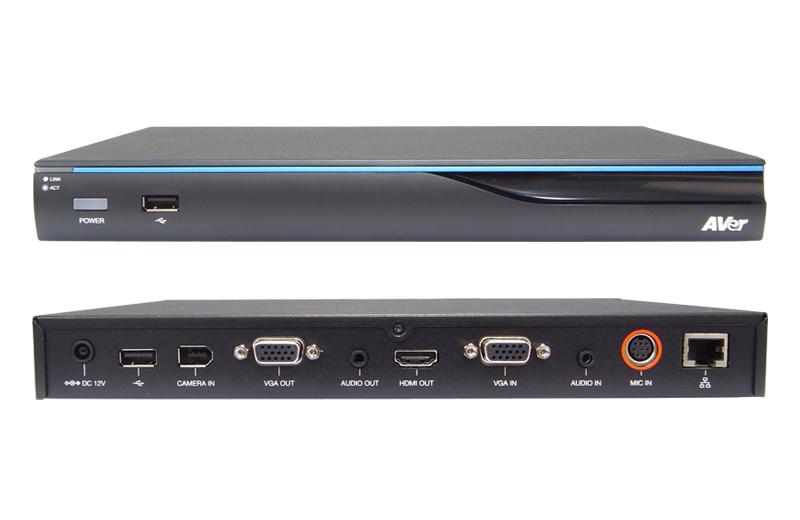

Aver EVC130 SIP Video Conferencing

Full 1080p H.323/SIP endpoint including, Microphone and 4x Digital Zoom Camera

Aver – EVC130
Full 1080p H.323/SIP endpoint including, Microphone and 4x Digital Zoom Camera
The EVC130 series is the video conferencing market’s new price-to-performance leader, offering small to medium-scale organizations a uniquely cost-effective full HD video conferencing solution.

The EVC130 features real-time full HD video streaming and real-time HD720p content sharing, wide-angle and PTZ camera options, an all-new microphone array, a sleek UI and a compact system design. In addition to impressive hardware, EVC130’s 3-year standard warranty and remarkably low total cost of ownership (TCO) translate into an astounding return on investment. Whether it is point-to-point conferencing, cloud-based video collaboration or hardware system integration, the standards-based EVC130 is the system of choice for savvy VC users.

Full HD video & HD content sharing

Experience natural, real-time video communication on one monitor, transmitting and receiving video up to HD1080p at 30fps, while sharing presentation files, animation, visualizer images and more at HD720p at 30fps on the other, creating a smooth, interactive video conferencing experience.

One-touch recording

Record your video conferences – video, audio and shared content – directly to a USB flash drive, turning them into video archives that help avoid post-meeting information loss. Playback recorded meetings using your EVC130 system or on your PC using AVer’s VCPlayer software.

High definition camera selections

The full HD fixed focus PT camera available standard with the EVC130 offers unparalleled wide-angle (88° FOV) capabilities to ensure no one is left out of the shot. EVC130P’s impressive full HD PTZ camera with 16X optical zoom allows for clear close-ups of participants in large conference rooms.

All-new microphone array

The sophisticated audio processing technology employed in EVC130’s all-new microphone array and full HD codec, like advanced noise reduction, automatic gain control and echo cancellation, produce crisp, true-to-life sound like no AVer video conferencing system before it.

Advanced network technology

AVer’s exclusive High Efficiency Lost Packet Recovery mechanism, or HELPeR™, ensures smooth audio and video streaming by calibrating call bandwidth and resolution, providing users with the best possible conferencing experience at any given time.

Handy integration & remote access tools

Access EVC130 remotely and troubleshoot issues in real-time using WebTool, AVer’s web-based management platform. Leverage Wake-on-LAN (WOL) to remotely power on EVC130 via a local network, or Telnet to integrate EVC130 with audio-visual equipment via LAN or the Internet.

FEATURES:
• experience natural, real-time video communication up to HD1080p at 30 fps
• share and receive content from computers, visualizers (document cameras) and similar devices at HD720p resolution and lag-free 30fps frame rate
• record everything on the screen directly to a flash drive even when you’re not in a call
• playback recorded meetings in the original .vc file format, or convert them into .mov files with the latest version of VCPlayer
• get everyone into the picture comfortably thanks to the wide-angle camera’s unparalleled 88° FOV and pan and tilt functionality
• produce crisp, true-to-life sound with the EVC130’s unique microphone array and sophisticated audio processing technology
• achieve smooth audio and video streaming under erratic network conditions through AVer’s exclusive High Efficiency Lost Packet Recovery mechanism (HELPeR™)
• benefit from the system’s compact, lightweight hardware design and straightforward, user-friendly operation
• enjoy peace of mind with AVer’s industry-leading 3-year standard warranty
• access the system remotely and troubleshoot issues in real-time using WebTool, AVer’s web-based management platform, or leverage Wake-on-LAN (WOL) to power on the system remotely
• integrate EVC130 with audio-visual equipment via LAN or the Internet through Telnet support
• connect with other standards-based video conferencing devices through H.323/SIP



SPECIFICATIONS:

Communications
• H.323 and SIP standards
• 128Kbps~4Mbps
• RJ45 network LAN (10/100/1000)
• manual bandwidth settings
• content sharing capability from all sites
Camera
• support for single camera
• EVC130 eCam Focus
Video Resolutions
• HD1080p (1920 x 1080)
• HD720p (1280 x 720)
• 480p (848 x 480)
• 4CIF (704 x 576)
• W288p (512 x 288)
• CIF (352 x 288)
• all resolutions at 30fps
Content Share Video Resolutions
supported resolutions:
• WSXGA (1440 x 900)
• HD (1360 x 768)
• SXGA (1280 x 1024)
• SXGA (1280 x 960)
• WXGA (1280 x 800)
• XGA (1024 x 768)
• SVGA (800 x 600)
• VGA (640 x 480)
output resolutions:
• HD720p (1280 x 720) up to 30fps
Video Standards
• H.264, H.263, H.263+, H.261
• H.239 dual video streams
Video Inputs
• EVC eCam Focus camera
• VGA
Video Outputs
• HDMI
• VGA
Audio Standards
• G.711, G.722, G.728, G.722.1/G.722.1C licensed from Polycom®
Audio Features
• automatic gain control (AGC)
• advanced noise reduction
• acoustic echo cancellation (AEC)
Audio Inputs
• EVC microphone array
• line-in (3.5 mm)
Audio Outputs
• digital audio on HDMI cable
• line-out (3.5 mm)
Other Supported Standards
• H.224, H.225, H.245, H.281, H.323 Annex Q, H.460
User Interface
• multiple layout styles
• user-friendly OSD (21 supported languages: English, Traditional Chinese, Simplified Chinese, Czech, Danish, Dutch, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazil, Romanian, Russian, Spanish, Swedish, Thai)
• display / edit site name
Network
• 10/100/1000Mbps
• NAT / firewall traversal
• High Efficiency Lost Packet Recovery (HELPeR™)
• API support via Telnet
• Wake-on-LAN (WOL) support
• IPv4 and IPv6 support
• QoS
Security
• AES (Advanced Encryption Standard) function (128-bit)
• password protection for system settings
• password protection for remote system management
Web Management Tool
• remote management through the Web
• live monitoring via the web
• firmware update via Ethernet / Internet
• phonebook download / upload / edit
• restore system settings
• Network test
Value-Added Features
• meeting recording
• dual monitor support
• speed dialing via hot keys (10 sets)
• camera presets (10 positions)
• Network Time Portocol (NTP)
Power Supply
• AC 100V~240V, 50/60Hz
• consumption: 12V, 4A
Environmental Data
• operation temperature: 0°C~40°C
• operation humidity: 20%~80%
• storage temperature: -20°C~60°C
• storage humidity: 20%~80%
Physical Characteristics
• package dimensions: 330 x 230 x 265 mm
• package weight: 3.7kg (8.15lbs)
• main system (codec): 260 x 158.7 x 33 mm
• EVC130 eCam Focus camera: 137.7 x 122.3 x 130 mm
• EVC microphone array: 131.9 x 118.6 x 25.5 mm
