Product Description

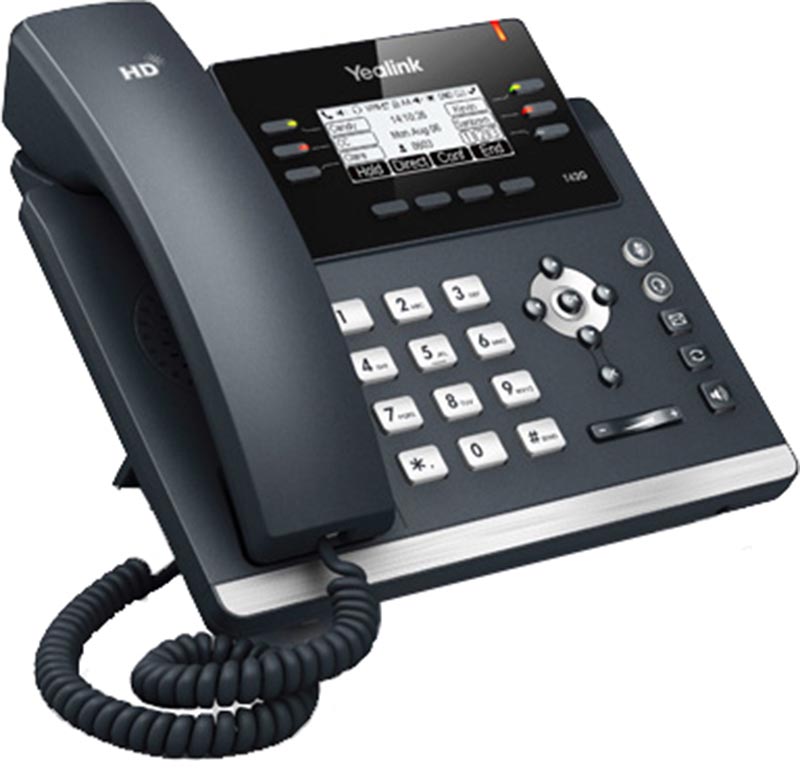

Yealink – SIP-T41P

6 Line, Dual 10/100, 2.7″ LCD IP Phone Paper label free design, Optima HD Audio

The SIP-T41P is Yealink’s latest T4 series SIP business phone. Optimised for ease of use and delivering superb sound quality, the SIP-T41P’s revolutionary design features 18 on-screen programable buttons for fast, intuitative call handling.

The SIP-T41P, a member of Yealink’s new generation T4 series, is a feature-rich SIP phone designed for today’s business user. This 6-Line IP phone shares the T4 series’ elegant, ergonomic design which ensure easy, accurate use of all operations on the handset, and Yealink’s Optima Audio technology which deliver superb sound quality. The 2.7″ inch 192×64 graphical LCD backlit screen provides a rich visual experience.

The SIP-T41P’s offers 3 screens of 6 programmable softkeys which can be used to control 15 call-handling operations – more than any comparable Ip phone currently available.

The SIP-T41P supports a wide productivity-enhancing feature set that includes SCA, BLF List, call forward, call transfer and 3-way conference calls. Yealink’s YHS32 and EHS36 accessories are supported so the phone can be controlled through a wireless headset.

A prominently displayed ‘message waiting’ LED and six line keys, each with an associated LED indicator provide ‘at a glance’ information to phone users.

Efficient installation and provisioning is ensured. Integrated IEEE 802.3af Power over Ethernet allows easy deployment with centralised powering and backup. The SIP-T41P supports FTP, TFTP, HTTP, and HTTPS protocols for file provisioning, and is configured by default to use Trivial File Transfer Protocol (TFTP). The phone supports AES encrypted XML configuration file. Security is further enhanced via the support of SIP over Transport Layer Security (TLS/SSL), giving Service Providers the latest technology for enhanced network security.

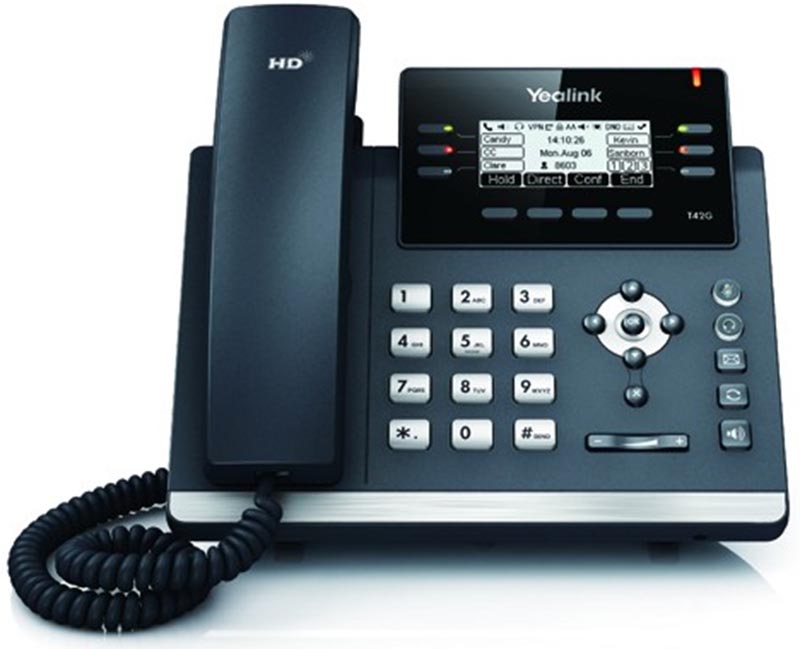

The SIP-T42G has an adjustable integrated stand with two viewing positions – or can be wall mounted. (Optional Wall Mount Bracket)

As with all Yealink’s T4 Series phones, the SIP-T41P is certified compatible with 3CX, Asterisk and BroadSoft Broadworks, ensuring excellent compatibility with leading softswitch suppliers.

FEATURES:



Part of theT4 series – revolutionarily new design
Yealink Optima HD voice for crystal clear audio
Dual-port 10/100Mbps Ethernet
Sparkling 2.7″ 192 x 64 pixel graphical backlit LCD display
Up to 6 SIP accounts
Paper label free design – 3 screen of 6 programmable buttons
PoE support
Headset and EHS supported for control via a wireless headset
Simple, flexible and secure provisioing options
Integrated stand with 2 adjustable viewing angles
Wall mountable (Optional Wall Mount Bracket)
Power Adapter Optional

SPECIFICATIONS:

Audio Features
HD voice: HD handset, HD speaker
Codecs: G.722, G.711(A/µ), G.723, G.729AB, G.726, GSM
DTMF: In-band, Out-of-band(RFC 2833) and SIP INFO
Full-duplex hands-free speakerphone with AEC
VAD, CNG, AEC, PLC, AJB, AGC
Phone Features
6 VoIP accounts
Mute, auto-answer, DND
One-touch speed dial, redial
Call forward, call waiting, call transfer, call hold
Group listening, call return
Mute, auto answer, DND
Call history: dialed/received/missed/forwarded
3-way confernecing
Direct IP call without SIP proxy
Ring tone selection/import/delete
Hotline, emergency call
Set date time manually or automatically
Dial plan, XML Browser, action URL
Directory
Local phonebook up to 1000 entries
BroadSoft contacts: custom/enterprise/personal/common/search/speed dial
Black list
XML/LDAP remote phonebook
Intelligent search method
Phonebook search/import/export
IP-PBX and BroadSoft Features
Busy Lamp Field (BLF), BLF list
Bridged Line Apperance(BLA)/SCA
Anonymous call, Anonymous call rejection
DND & forward synchronization
BroadWorks Anywhere
N-Way Calling, remote office
Message Waiting Indicator (MWI)
BroadSoft call center features
Voice mail, call park, call pickup
Intercom, paging, music on hold
Call recording, hot-desking
Display and Indicator
2.7″ 192 x 64-pixel 4-level grayscale graphical LCD display with backlight
Caller ID with name, number
LED for call and message waiting indication
Dual-color (red or green) illuminated LEDs for line status information
Intuitive user interface with icons and soft keys
National language selection
Feature keys
6 line keys with LED
6 line keys can be programmed for up to 15 various features (3-page view)
5 features keys: message, headset, mute, redial, hands-free speakerphone
4 context-sensitive “soft” keys
6 navigation keys
2 volume control keys
Illuminated mute, headset and speakerphone key
Interface
Dual-port RJ-45100Base-TX Fast Ethernet
1x RJ-9 (4P4C) handset port
1x RJ-9 (4P4C) headset port
1x RJ-12 (6P6C) EHS port
Power over Ethernet (IEEE 802.3af), Class 3
Other Physical Features
Stand with 2 adjustable angles
Wall mountable
External universal AC adapter (optional): AC 100-240V input and DC 5V/1.2A output
Power consumption (PSU): 1.13W-2.31W
Dimension(WxD*HxT): 212mmx189mmx175mmx54mm
Operating humidity: 10-95%
Storage temperature: -10-50°C
Management
Configuration: browser/phone/auto-provision
Auto provision via FTP/TFTP/HTTP/HTTPS for mass deployment
Auto-provision with PnP
BroadSoft device management
Zero-sp-touch
Provisioning server redundancy supported
Phone lock for personal privacy protection
Reset to factory, reboot
Package tracing export, system log
Network and Security
SIP v1 (RFC2543), v2 (RFC3261)
NAT transverse: STUN mode
Proxy mode and peer-to-peer SIP link mode
IP assignment: static/DHCP
HTTP/HTTPS web server
Time and date synchronization using SNTP
UDP/TCP/DNS-SRV(RFC 3263)
QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
SRTP for voice
Transport Layer Security (TLS)
HTTPS certificate manager
AES encryption for configuration file
Digest authentication using MD5/MD5-sess
OpenVPN, IEEE802.1X
IPv6
