This solution offers more analog phone support for smaller offices and allows users to take advantage of advanced features normally only available on the QuadroM32x.

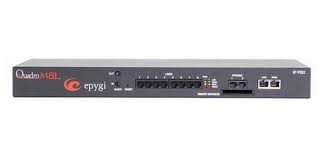

The QuadroM8L is for offices of 32 - 98 users supporting up to 45 concurrent calls with a high demand for IP Phone users
This new model provides support for up to 98 stations in a complete VoIP PBX solution with integrated Voice Mailboxes, Auto Attendants, Directory Assistance and Unified Messaging. Additional Call Centre features including ACD, Call Barge-In and Call Recording are supported via add on license keys.
Even though the QuadroM8L is designed for medium-size offices, the new owner can be comfortable knowing they are using an enterprise-grade solution backed by Epygi’s support and guaranteed reliability.
Small business customers demand feature-rich and price-competitive IP PBX solutions. The QuadroM8L answers that demand with increased IP ports and enhanced features for medium-sized offices. Now offering eight (8) FXO lines and up to 96 IP phone users, the QuadroM8L allows for large growth for maturing companies. Also added to the QuadroM8L are audio input and output ports for music on hold and paging speaker connections. Additional storage options include a compact flash slot or an external FTP server for recorded calls or system backups.
Features:

This solution offers more analog phone support for smaller offices and allows users to take advantage of advanced features normally only available on the QuadroM32x.


The QuadroM32x IP PBX was designed for larger businesses with a greater need for IP extensions and SIP trunks. The appliance boosts capacity to as many as sixty concurrent calls and scales to 192 extensions. Maximum call capacity is achieved using ITSP services and an E1/T1 interface for all local and failover calling (the ability to switch to another system in the event of service interruption). The QuadroM32x includes two FXS ports for connecting standard analog phones, fax machines or similar devices. Like other Quadro IP PBXs, the QuadroM32x comes with a built-in QoS router for Internet access, a stateful inspection firewall, NAT, DHCP client and server, IPSec and VPN. It can be configured remotely via web browser using a simple GUI. Software enhancements include an optional integrated 32/64-person audio conference bridge, ACD (Automatic Call Distribution) for call centers, call recording, barge in features and video conferencing. These features are easily enable with software licenses added to the QuadroM32x.
